LED Video Wall Installation & Maintenance Guide

LED video walls are taking over the world of visual displays, delivering unparalleled brightness, seamless clarity, and flexibility for a range of applications. For event planners, corporate marketers, AV professionals, and more, they are fast becoming essential tools for dynamic and impactful visual communication.

This guide breaks down everything you need to know about LED video walls—from how they work and how to install them to proper maintenance, troubleshooting, and future-proofing strategies. Backed by over 40 years of expertise, Hartford Technology is here to ensure you get the most from your LED video wall investment.

What Are LED Video Walls and How Do They Work?

Before we get into the technical details, let’s start with the basics.

Definition and Components of LED Video Walls

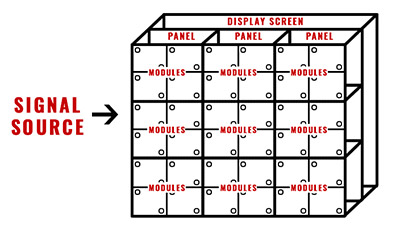

An LED video wall is a large display made up of multiple LED (light-emitting diode) panels or modules seamlessly tiled together. Each unit operates as an individual pixel on the display, allowing the image to scale up to virtually any size.

Key components include:

• LED Modules: These contain groups of LEDs that combine to form the visual display.
• Cabinets: These house the LED modules and provide structural support.
• Control Systems: These synchronize the video signals and allow operators to control content, brightness, and display performance.

How LED Video Walls Function

Unlike LCD technology, LED video walls use diodes to emit light directly, providing:

• Superior brightness and clarity—even in well-lit environments.
• Accurate and vivid color reproduction.
• Seamless configurations with no visible bezels or borders.

Their modular designs offer unmatched flexibility, allowing customization in size, resolution, and layout design, making them suitable for applications ranging from corporate events to digital signage in retail.

Benefits of LED Video Walls

Why choose LED video walls over other display technologies like LCD screens or projectors?

• Brightness: They outperform projectors and LCDs, even in bright outdoor settings.
• Durability: Designed to withstand long operating hours with minimal wear.
• Energy Efficiency: Excellent power-to-brightness ratio makes them cost-effective.
• Customization: Tailored configurations for unique display requirements.
• Seamless Quality: No distracting bezels; a truly unified viewing experience.

LED video walls are a versatile investment for immersive experiences in environments like corporate conferences, product launches, and tech expos.

Key Considerations for LED Video Wall Installation

Proper planning is the backbone of a successful LED video wall installation. Here’s what you need to consider:

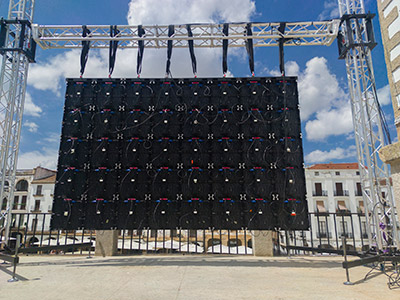

Site Evaluation

• Space: Measure the available space to determine the screen size that can fit comfortably.
• Lighting Conditions: Consider ambient light levels. While LEDs perform well in brightness, understanding light sources ensures optimal placement.
• Viewing Angles: Check the angles from various seating or standing positions to ensure all viewers have a clear line of sight.

Design Considerations

• Resolution and Aspect Ratio: Tailor the resolution to how close viewers will be and what content will be displayed. For instance, high-resolution screens are crucial for close-up viewing.
• Pixel Pitch: This measures the distance between LED pixels. Smaller pixel pitch equals higher image quality—a critical factor for applications like conference rooms where audiences are frequently closer to the display.
• Content Needs: Consider the type of media (static images, videos, interactive content) to choose suitable hardware and control systems.

Technical Requirements

• Power Supply: LED walls require robust, dedicated power sources to handle their demand. Fusing circuits is essential for safety.
• Data Management: Proper cabling and control systems are crucial to ensure consistent signal transmission.
• Structural Support: Ensure the mounting structure can handle the weight and provides secure attachments to prevent accidents.

With careful attention to these details, you’ll set a solid foundation for your LED video wall.

How to Install an LED Video Wall: Step-by-Step Guide

Installing an LED video wall can be complex, but breaking it into steps ensures a smoother process.

Step 1: Pre-Installation Preparation

• Inspect the site to verify it meets the physical and technical requirements established earlier.
• Gather all necessary equipment, tools, and components, including LED panels, cabinets, control equipment, and mounting materials.
• Verify compatibility between all components, including power and network connections.

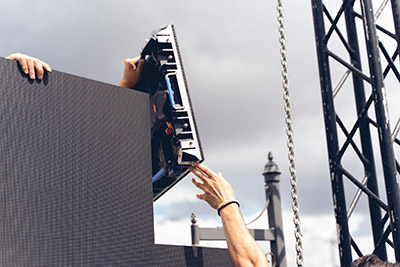

Step 2: Assembly of LED Modules and Cabinets

• Start by assembling the mounting frame or structure.
• Attach LED modules to the cabinets and align them carefully for a seamless display.
• Secure the cabinets onto the mounting structure, ensuring stability and proper alignment.

Step 3: Connecting Power and Control Systems

• Wire the power supply to ensure each module/cabinet receives adequate power.
• Connect data cables to integrate the control system and enable content synchronization across the wall.
• Securely route cables to maintain an organized, professional installation.

Step 4: Final Setup and Calibration

• Configure display settings, including brightness, contrast, and resolution, via the control software.
• Conduct color calibration to ensure the image appears uniform across all modules.
• Run a comprehensive test to verify proper functionality, connectivity, and image quality before project handover.

Essential Maintenance Tips for LED Video Walls

Maintaining your LED video wall ensures consistent performance and longevity.

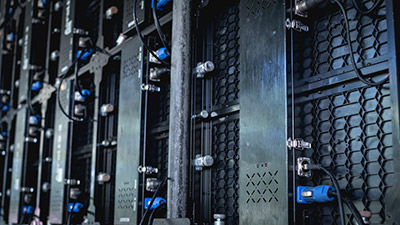

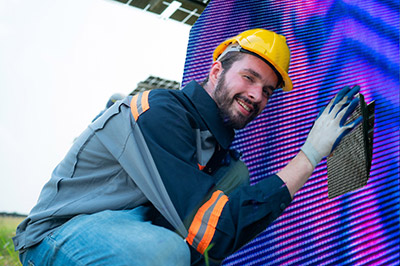

Regular Cleaning

• Remove dust accumulation with soft brushes or compressed air. Avoid using liquid cleaners to prevent damage to electronic components.
• Clean the screen gently to maintain clarity without scratching or damaging the LEDs.

Routine Inspections

• Conduct monthly checks on wires, connections, and cabinet stability.
• Pay attention to early signs of wear or environmental damage and address them promptly.

Software and Firmware Updates

• Keep control software updated to optimize functionality and protect against software vulnerabilities.
• Regularly check for firmware updates from manufacturers for efficiency and compatibility enhancements.

Proactive Maintenance Tips

• Install cooling systems or ensure proper airflow to prevent overheating.
• Schedule preventative maintenance with professional technicians to avoid costly repairs.

How to Troubleshoot Common LED Video Wall Problems

Even robust systems encounter hiccups. Here’s how to troubleshoot common issues:

Identifying Common Issues

• Dead Pixels: One or more LEDs remain unlit.
• Flickering: Panels display inconsistent brightness or flashing.
• Color Uniformity Issues: Colors appear uneven or inaccurate due to calibration errors.
• Connectivity Failures: Data transmission interruptions lead to blank screens or delays.

Basic Troubleshooting Steps

1. Check all input connections, ensuring cables are securely fastened.
2. Recalibrate color and brightness levels in the control software.
3. Replace faulty modules or LED panels as needed.
4. Restart the entire system to troubleshoot software-related glitches.

When to Seek Professional Help

If issues persist beyond basic troubleshooting, reach out to Hartford Technology for specialized support. Our team has decades of experience resolving technology problems efficiently.

Strategies for Future-Proofing Your LED Video Wall

To maximize the value of your investment, consider these strategies:

Modular Design and Scalability

• Choose designs that allow for easy upgrades or extensions as your requirements grow.

Technology Compatibility

• Opt for systems supporting advanced features like 4K/8K resolution and AI-driven control.

Proactive Upgrades

• Schedule regular, cost-effective hardware upgrades and software updates to maintain compatibility with future advancements.

Energy Efficiency and Sustainability

• Incorporate energy-efficient components and design practices to reduce power consumption and operational costs over time.

By adopting these forward-thinking strategies, your video wall can evolve seamlessly with your needs.

Maximizing the Impact and Longevity of Your LED Video Wall

LED video walls are dynamic tools that can transform a space with vibrant images and captivating content. But their true value lies in thoughtful planning, expert installation, and preventive care.

At Hartford Technology, we’re committed to being more than a supplier—we’re your partner in maximizing the impact of your technology investments. With over 40 years of experience, we’ll ensure your LED video wall not only meets but exceeds your expectations.

Contact Hartford Technology today to start your LED video wall project. After all, we’re “Not Just Equipment”—we’re here to deliver a bespoke AV experience designed for your success.
